EdgeWave iPrism

EdgeWave iPrism

Cyfin is designed to work with EdgeWave iPrism. It integrates easily into your current system configuration.

Company Overview

Founded in 1995, St. Bernard Software, Inc. relaunched as EdgeWave in 2011. The company offers secure content management and policy compliance solutions. Its products include iPrism, a Web content filtering appliance that enables organizations to enforce Internet-use policies by providing multi-protocol Web filtering and access control, and ePrism, an e-mail filtering and content inspection appliance, which protects against spam, viruses, and other unwanted e-mail content, as well as outbound data leakage through message content and attachment inspection, and policy enforcement.


Cyfin - EdgeWave iPrism Configuration

Cyfin is installed on a server, not on the EdgeWave iPrism appliance.


Log File Setup

Log File Type:  EdgeWave iPrism


Configuration Steps

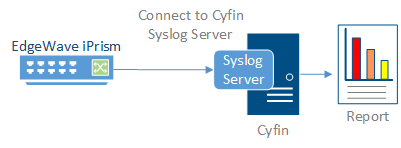

Cyfin Syslog Server listens for syslog messages from your EdgeWave iPrism device. Both UDP-based and TCP-based messages are supported.

  1. Select the EdgeWave iPrism log file configuration in Cyfin for your EdgeWave iPrism device.
  2. Specify the Directory in which the log files will be created. The default directory is [InstallPath]\wc\cf\log.
  3. Select Enable Syslog Server.
  4. For Port Type, select UDP or TCP for the Internet protocol you want to use.
  5. In the Listening Port field, the default port number is 1455. The listening port will be used by your EdgeWave iPrism device to transfer the data. You may change this number if necessary.
  6. At your EdgeWave iPrism device, specify the IP address of the Cyfin server and the listening port, and submit the syslog messages.
  7. Your log files will be created and displayed in the Log File Viewer in Cyfin.
  8. If you have many of the same EdgeWave iPrism devices, use one log file configuration with one listening port, and point each EdgeWave iPrism device to the same listening port.
